Help needed using Custom Credential value in Webhook Notification Header

Get Help
1

Hello,
I am trying to use a value from a Custom Credential Type in a Webhook Notification header, but nothing I am trying works.

Scenario:
Custom Credential Type = Webhook Keys with the following definition:
“inputs”: {
“fields”: [
{
“id”: “App_API_username”,
“type”: “string”,
“label”: “API_Username”
},
{
“id”: “App_API_Key”,
“type”: “string”,
“label”: “API_Key”,
“secret”: true
}
]
},
“injectors”: {
“extra_vars”: {
“App_API_Key”: “{{ App_API_Key }}”,
“App_API_USERNAME”: “{{ App_API_username }}”
}
}

I have created the following Credential using that custom type:
“name”: “Dev API Key”
“inputs”: {
“App_API_Key”: “$encrypted$”,
“App_API_username”: “”
},

What I am having a hard time figuring out is how to get the App_API_Key value for that credential into a Webhook Notification header:

{
“content-type”: “application/json”,
“key”: “{this is where I need the value from the credential}”
}

Any ideas on how I can accomplish this?

JT

2

If I’m understanding what you’ve said correctly. It would be App_API_Key.

Assuming in AWX you have your Job Template and you’ve created a Credential from the custom Credential Type and associated it with the Job Template, in your playbook:

---
- hosts: localhost
  tasks:
    - ansible.builtin.uri:
      url: https://some-webhook-service.example.tld
      headers:
        key: "{{ App_API_Key }}"
3

I need it in a Webhook Notification header, not in a playbook.

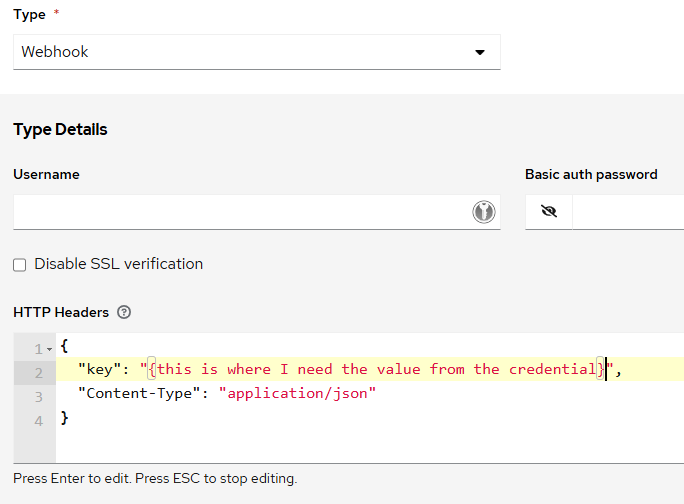

image684×504 14.9 KB

4

The closest I’ve found in 4 days of google/documentation searching is:
{{ ‘Dev API Key’ | App_API_Key(‘App_API_Key’) }}

But the filter App_API_Key is not built-in, and not recognized. I don’t know what filter to use for a customer credential type.

The only thing left I can think to try is use the Custom Credential type name as the filter, but I suspect I would need to remove the space in it.

5

OK, you’re configuring a Notification Template with the Webhook type. That wasn’t clear to me in your initial post.

I don’t know of any way to access a Credential within a Notification Template. I don’t think it’s possible. The AWX Community documentation shows an example with an Authentication header having the value directly.

6

Yep, I’ve been all over the docs. Here is another suggestion Google came up with:

{
      "Authorization": "Basic {{ '{{' }} MyWebhookAuth.username {{ '}}' }}:{{ '{{' }} MyWebhookAuth.password {{ '}}' }} | b64encode }}"
}

But so far it’s not working using my values.
